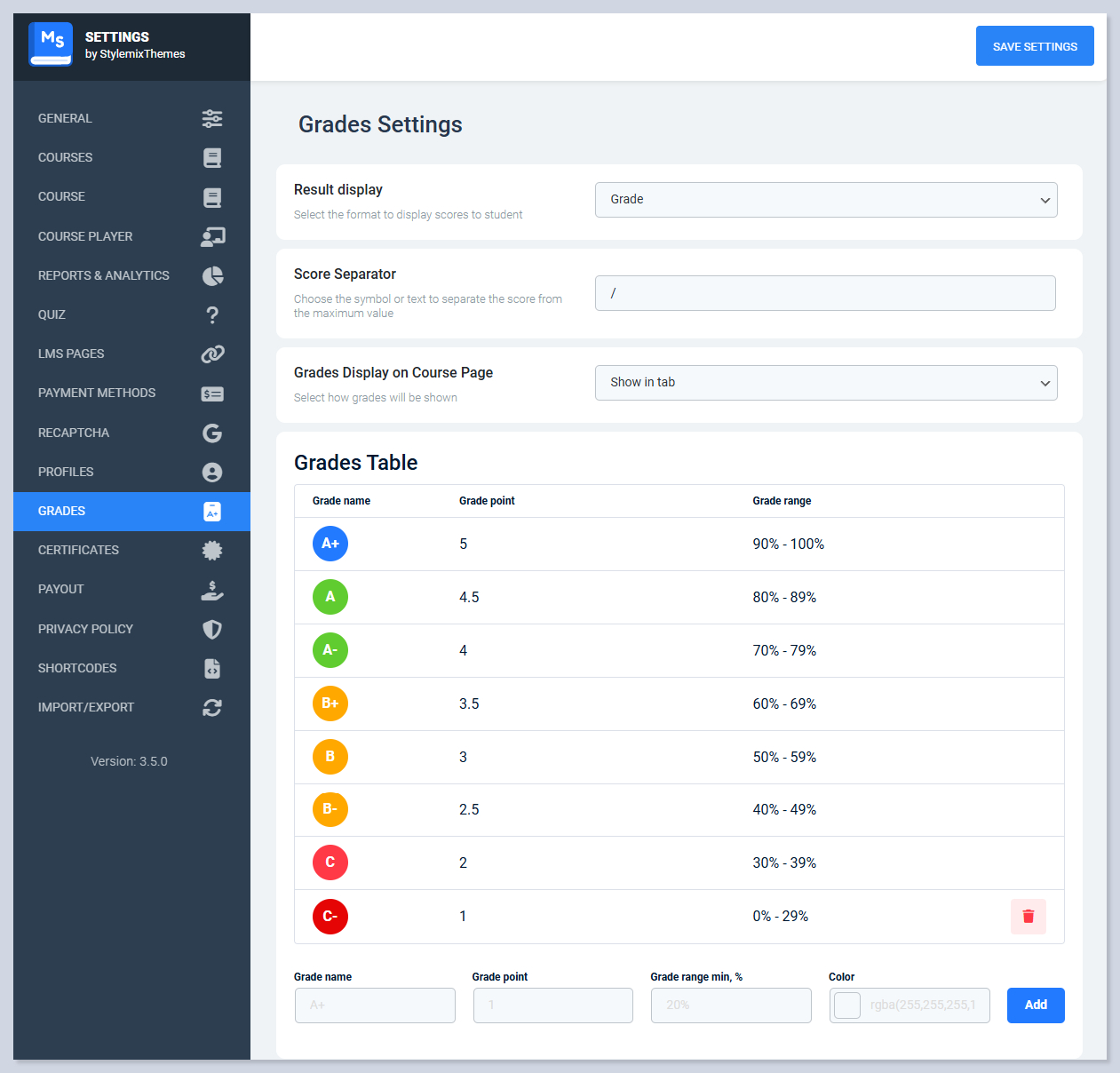

# Grades {% embed url="" %} The grades tab of the plugin settings contains several parameters to manage the [Grades Feature](https://docs.stylemixthemes.com/masterstudy-lms/lms-pro-addons/grades) of the MasterStudy LMS. Here is the overview of the tab:

**WP Dashboard > MS LMS > Settings > Grades**

## Result Display

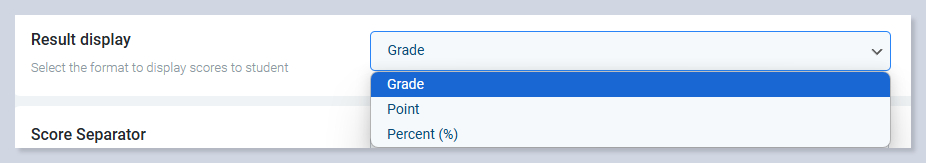

**Result Display** setting enables to display of the grade scores of the student in one of the three available formats: {% tabs %} {% tab title="Grade" %}

{% endtab %} {% tab title="Point" %}

{% endtab %} {% tab title="Percent (%)" %}

{% endtab %} {% endtabs %} ## Score Separator

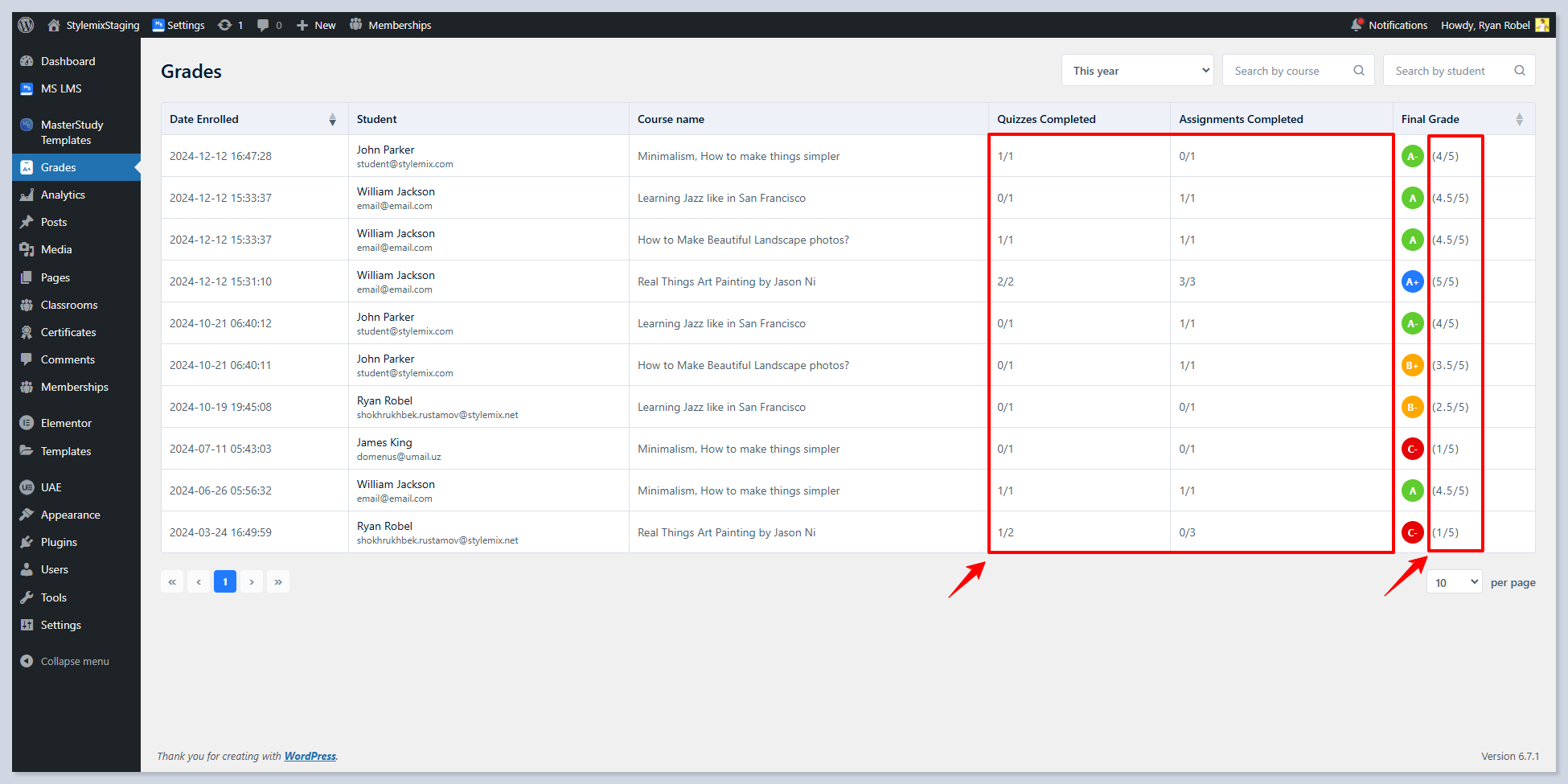

**Score Separator** is the symbol or text used to separate the score from the maximum value. This symbol is used wherever the **current score** of the student is displayed, **along with the maximum value** of the quiz or assignment. {% tabs %} {% tab title="Score Separator in Grades Tab" %}

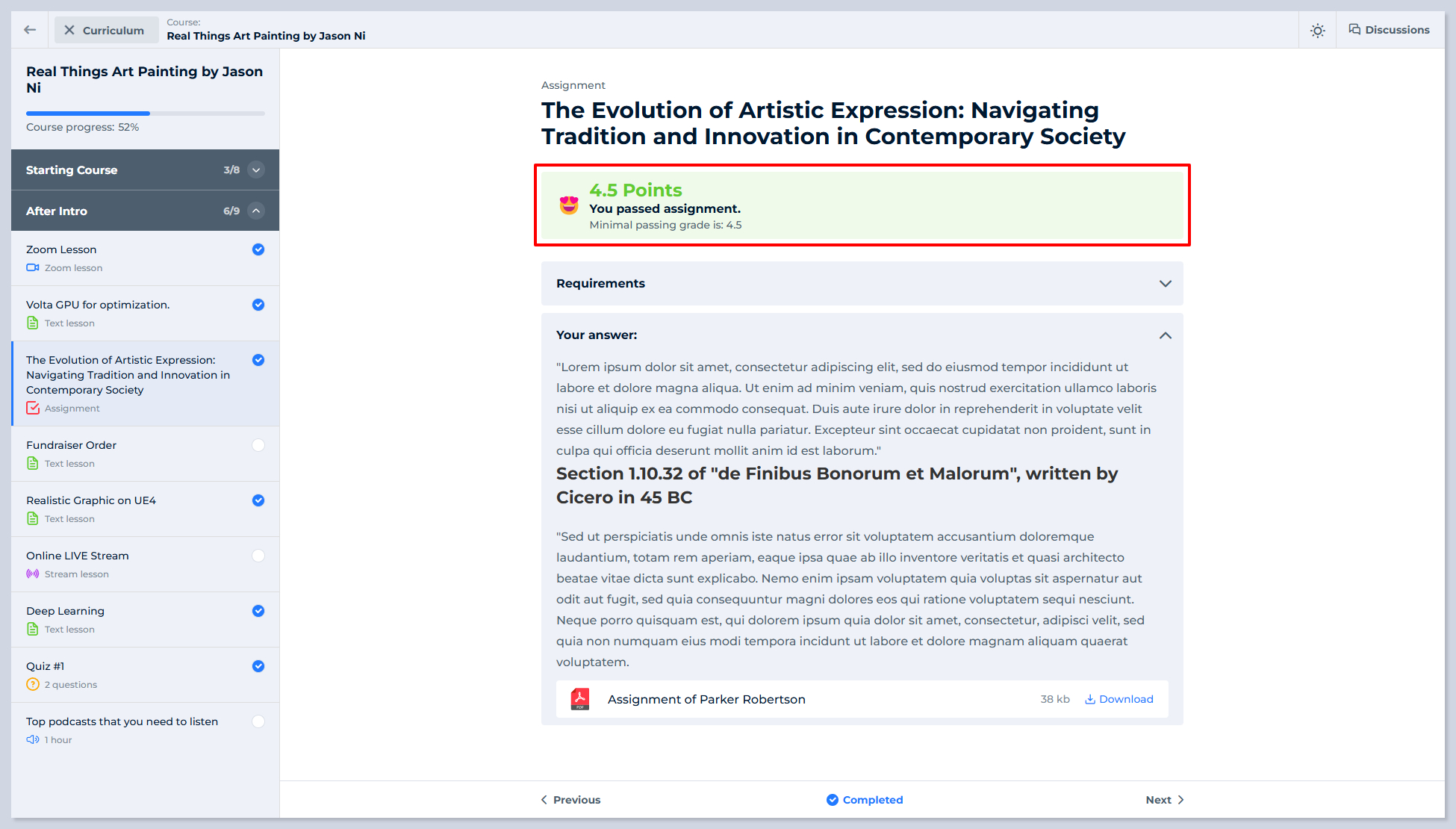

{% endtab %} {% tab title="Score Separator in Grade Details" %}

{% endtab %} {% endtabs %} ## Grades Display on Course Page

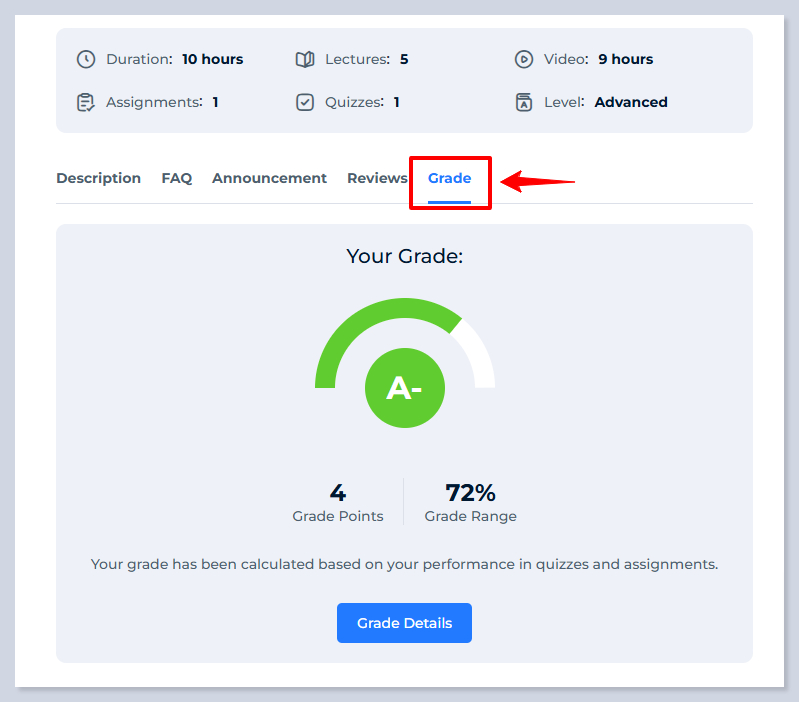

This setting enables you to control the display of the **Course Grade** in the[ **Single Course Page**](https://docs.stylemixthemes.com/masterstudy-lms/lms-settings/course). Choose one of the available ways you want to display the grade: {% tabs %} {% tab title="Show as a separate tab" %}

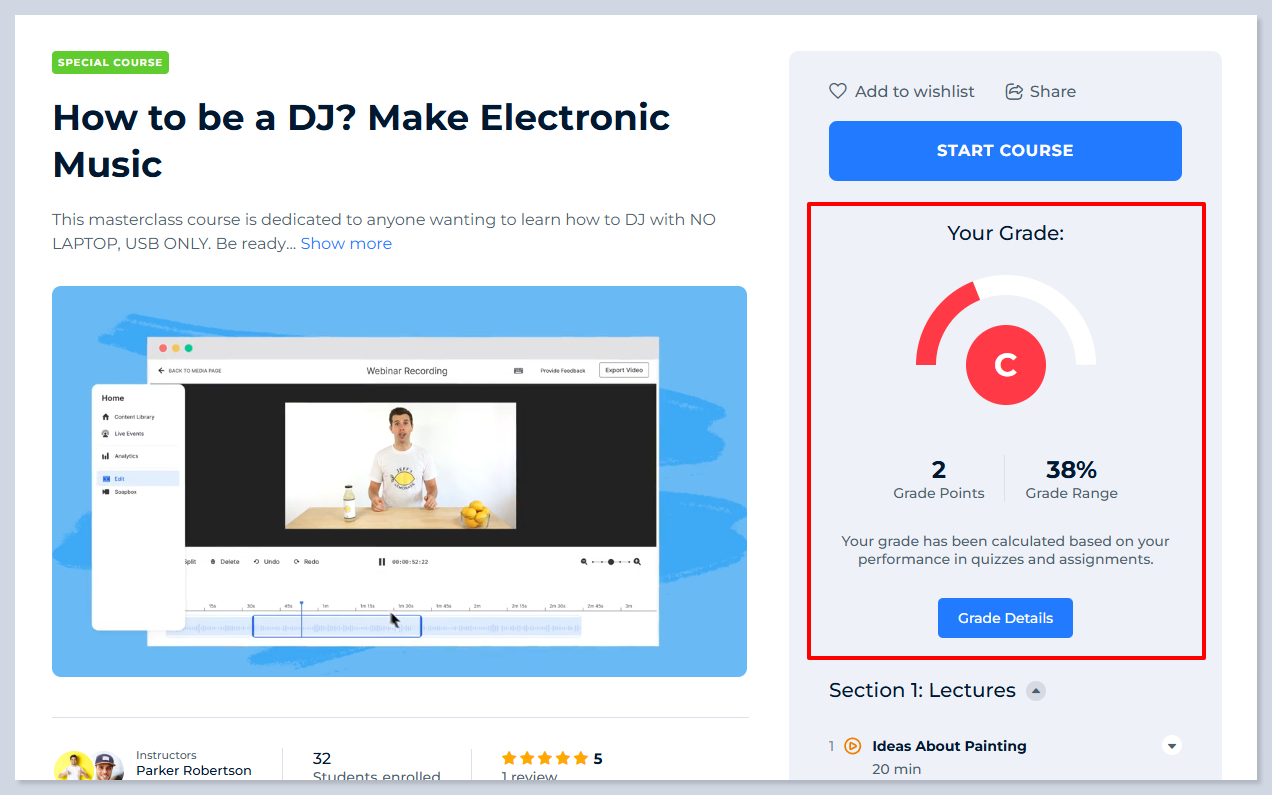

{% endtab %} {% tab title="Show in Sidebar" %}

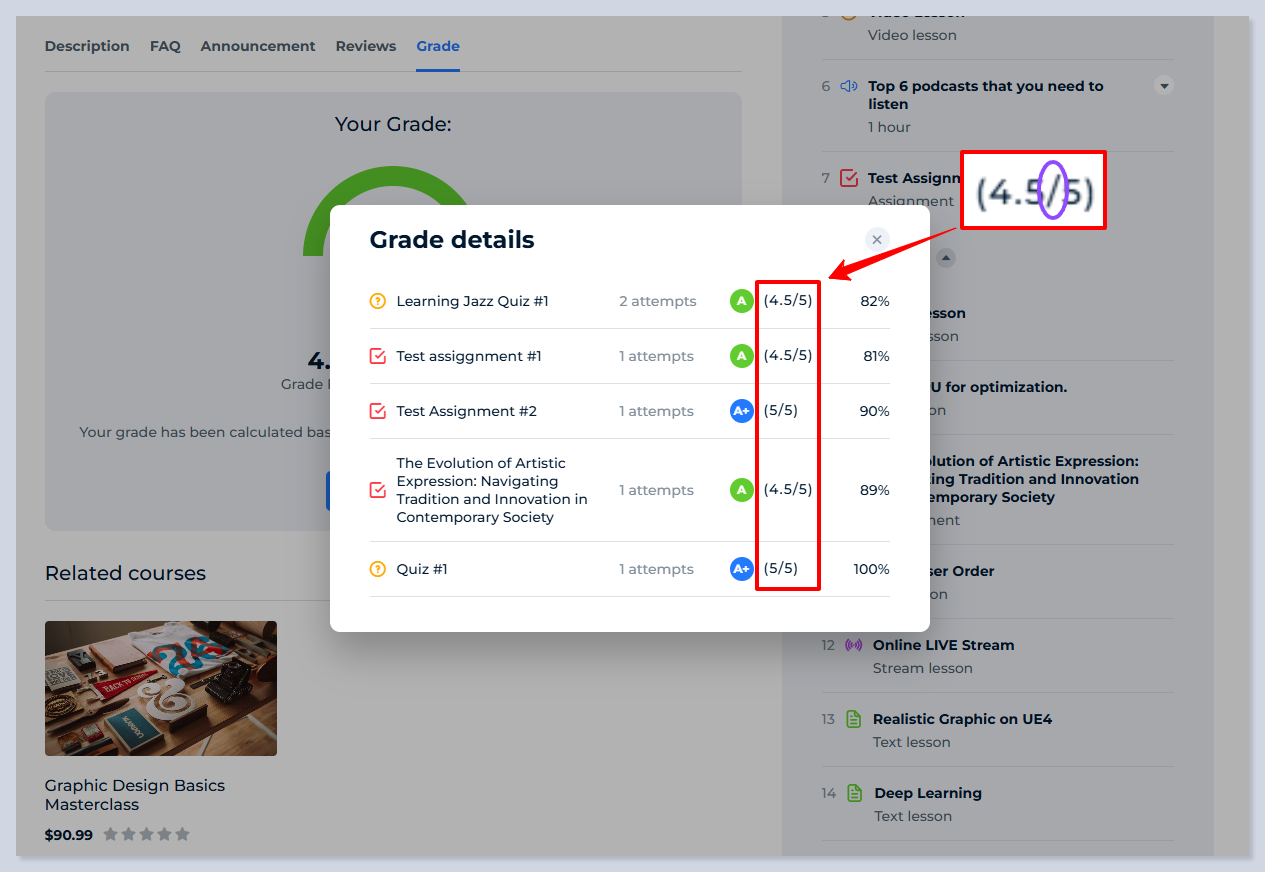

{% endtab %} {% endtabs %} **Grade Details** can also be viewed here as well:

## Grades Table This is the place where you have to define the available grades in your LMS. You can design any grading system according to your needs. Initially, the Grades Table will come with the following predefined grades.

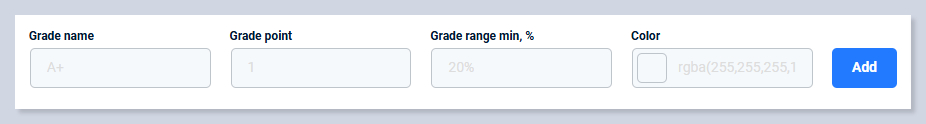

* **Grade Name** - the label of the grade, represented in letters and symbols * **Grade Point** - numerical value corresponding to the grade on a point scale * **Grade Range** - the percentage interval that defines the scores required for a student to receive a specific grade ### How to Add New Grades? You can add new grades at the bottom of the [**Grades Table:**](#grades-table)

* **Grade Point** - numerical value corresponding to the grade on a point scale * **Grade Name** - the label of the grade, represented in letters and symbols * **Grade Range min, %** - specify the minimum range value for the new grade * **Color** - select the color for the grade using the RGBA color picker If you want to add new grades to the existing [**Grades Table**](#grades-table), there is only one rule you have to follow: {% hint style="info" %} The minimum range must be less than the previous one. In other words, Grades will always be entered in descending order. {% endhint %} Let's assume we have a C grade at the bottom of our grades table. It means C is the lowest grade in our LMS. But we want to add a C- grade as well.

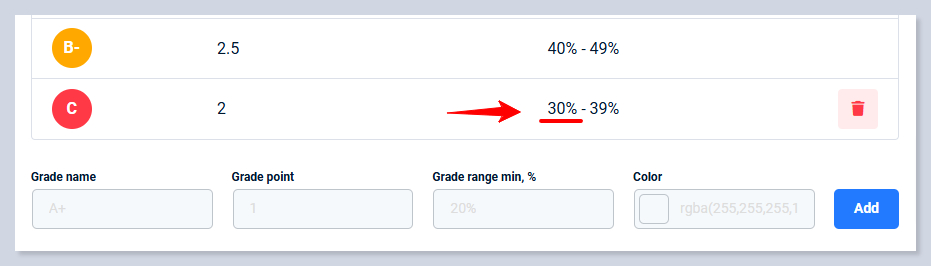

As you see from the picture, **30%** is the minimum range value for the grade C. So the minimum range of our new grade should be less than 30. After filling required fields, click on the **Add** button to add the grade.

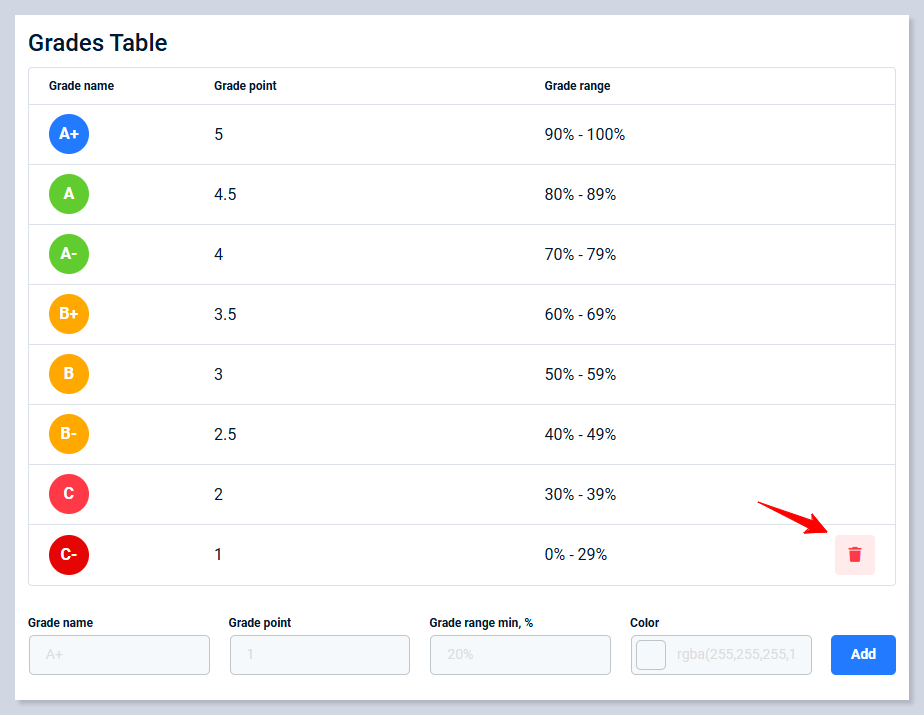

You can delete the last grade in the table using the trash 🗑 button:

{% hint style="warning" %} You **cannot delete** or **edit** grades **except for the last one**. To edit a grade that is not the last one, you must first delete the grades after it, making the grade you want to edit the most recent (last). Once you've made the desired changes, you can re-add the deleted grades. {% endhint %} *** **Detailed info** about the **Grades Feature** of **MasterStudy LMS** can be found in this manual: {% content-ref url="../lms-pro-addons/grades" %} [grades](https://docs.stylemixthemes.com/masterstudy-lms/lms-pro-addons/grades) {% endcontent-ref %}
